Polaris RZR Turbo S/Turbo S 4 HD Pro Max A-Arm Kit

As low as $1,199.00
In stock
Only %1 left
SKU
K82-0601

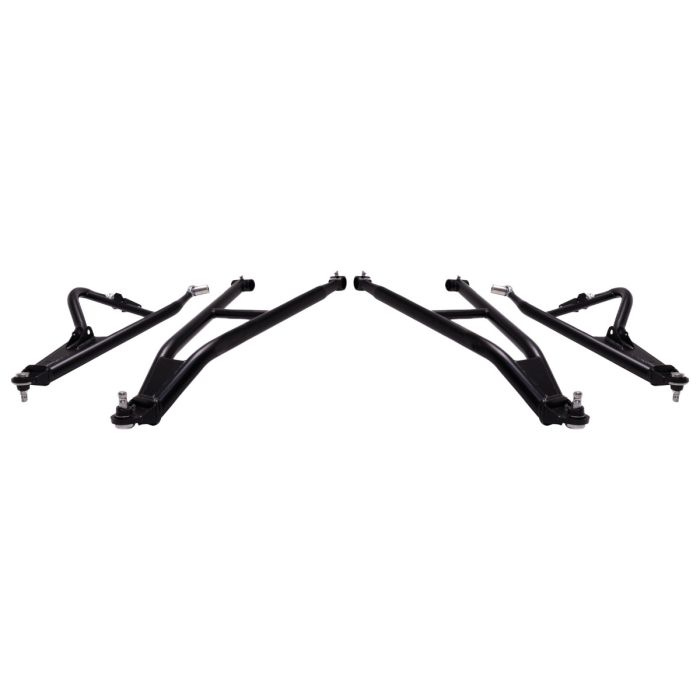

Our ZBROZ HD PRO MAX A-arm Kit for the Polaris Turbo S & Turbo S 4 takes strength to the next level. It was built to take on extreme mountain trails, rock crawling, and desert/dune rally action. Providing Maximum Ground Clearance designs that give you the added advantage over those a-arm snagging obstacles while still protecting your front axles.
  • Built with a larger 1.5" Diameter DOM steel tube, 1/2” bigger than the HD Pro Series, our ZBROZ HD PRO MAX high clearance a-arms will take you anywhere you want to go! All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality. All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.

    Our HD PRO MAX Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles. ZBROZ was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002. We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.
    Looking to run larger tires? Our +2" Forward Design allows for larger tires which are key for mountain trail, rock crawling, and high-speed desert/dune racing. Easily fits 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit. Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs


    The Upper A-Arms feature our Camber Adjustable Heim Joints that allows you to fine-tune the camber and Caster settings on your Turbo S. All Camber Adjustable A-Arm Kits are shipped with a negative 1-degree camber. Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding. This Camber Adjustable feature allows total adjustment so that you can fine-tune the camber on each side


    Our ball joint housing specs are compatible with OEM and most aftermarket ball joints. We offer pre-installed ball joints using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms. And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.
    Easy to install with a jack or lift in your driveway or garage with basic tools.


    Features Include:
    • Stronger than OEM
    • Camber and Castor Adjustable (Upper A-Arms Only)
    • Teflon Lined Heavy Duty Heim Joints
    • Pre-Installed Bushings and Grease Zerks
    • Compatible with OEM sway bars and ball joints
    • Direct Bolt-on installation, no modifications required
    • MADE IN THE USA

  • Write Your Own Review
    You're reviewing:Polaris RZR Turbo S/Turbo S 4 HD Pro Max A-Arm Kit
  • Do it yourself!

    Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ZBROZ Racing is NOT responsible for any damage or failure resulting from improper installation.

    Download Pdf Instructions

    SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

    Have a certified mechanic do it for you!

  • Zbroz Racing products are fulfilled per order on a first come first serve basis. We strive to fulfil all orders within 48 hours. Should a backorder condition result you will be notified and we will fulfil your order as quickly as possible. If placing an order for a Zbroz Racing Exit Shock product. Please know they are custom built to order and depending upon demand can take 4 weeks or longer to supply. Zbroz Racing products are built to last and exceed your expectations with quality, performance and durability in mind. Should you have any questions or concerns please contact us at customerservice@zbrozracing.com. Thanks again for your order and we look forward serving your off-road needs.


Quick Overview
Our ZBROZ HD PRO MAX A-arm Kit for the Polaris Turbo S & Turbo S 4 takes strength to the next level. It was built to take on extreme mountain trails, rock crawling, and desert/dune rally action. Providing Maximum Ground Clearance designs that give you the added advantage over those a-arm snagging obstacles while still protecting your front axles.
Details

Built with a larger 1.5" Diameter DOM steel tube, 1/2” bigger than the HD Pro Series, our ZBROZ HD PRO MAX high clearance a-arms will take you anywhere you want to go! All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality. All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.

Our HD PRO MAX Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles. ZBROZ was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002. We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.
Looking to run larger tires? Our +2" Forward Design allows for larger tires which are key for mountain trail, rock crawling, and high-speed desert/dune racing. Easily fits 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit. Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs


The Upper A-Arms feature our Camber Adjustable Heim Joints that allows you to fine-tune the camber and Caster settings on your Turbo S. All Camber Adjustable A-Arm Kits are shipped with a negative 1-degree camber. Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding. This Camber Adjustable feature allows total adjustment so that you can fine-tune the camber on each side


Our ball joint housing specs are compatible with OEM and most aftermarket ball joints. We offer pre-installed ball joints using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms. And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.
Easy to install with a jack or lift in your driveway or garage with basic tools.


Features Include:
• Stronger than OEM
• Camber and Castor Adjustable (Upper A-Arms Only)
• Teflon Lined Heavy Duty Heim Joints
• Pre-Installed Bushings and Grease Zerks
• Compatible with OEM sway bars and ball joints
• Direct Bolt-on installation, no modifications required
• MADE IN THE USA

Reviews
Write Your Own Review
You're reviewing:Polaris RZR Turbo S/Turbo S 4 HD Pro Max A-Arm Kit
Installation

Do it yourself!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ZBROZ Racing is NOT responsible for any damage or failure resulting from improper installation.

Download Pdf Instructions

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Have a certified mechanic do it for you!

Additional Information

Zbroz Racing products are fulfilled per order on a first come first serve basis. We strive to fulfil all orders within 48 hours. Should a backorder condition result you will be notified and we will fulfil your order as quickly as possible. If placing an order for a Zbroz Racing Exit Shock product. Please know they are custom built to order and depending upon demand can take 4 weeks or longer to supply. Zbroz Racing products are built to last and exceed your expectations with quality, performance and durability in mind. Should you have any questions or concerns please contact us at customerservice@zbrozracing.com. Thanks again for your order and we look forward serving your off-road needs.
