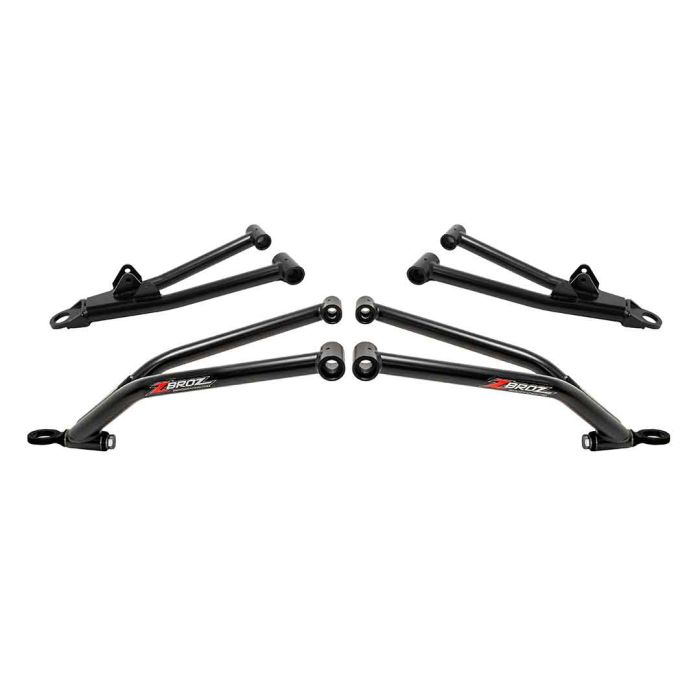

Polaris Ranger XP 1000/CREW HD Pro +2 Forward A-arm Kit (2021-2022)

As low as $849.00
In stock
SKU
K82-0606

The ZBROZ HD PRO +2 Forward Camber Adjustable A-arm Kit for the Polaris Ranger was built to take on any terrain or load you can throw at it! Built with our Maximum Ground Clearance design providing you with the advantage of adding larger wheels and tires and allows you to drive over those arm snagging obstacles while still protecting your front axles.

Color

  • RAW - K82-0606-0
  • BLACK - K82-0606-01
  • Built from 1.125" Diameter DOM steel tube, our ZBROZ HD PRO high clearance a-arms will take you anywhere you want to go! All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality. All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.


    Our HD PRO Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles. ZBROZ was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002. We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.


    Looking to run larger tires? Our +2" Forward Design allows for larger tires which are key for mountain trail, rock crawling, and high-speed desert/dune racing. Easily fits 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit. Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs.


    The Lower A-Arms feature our Camber Adjustable ball joint housing that allows you to fine-tune the camber settings on your RZR. Simply unbolt the ball joint housing and add or remove included camber shims. Each shim will adjust the camber by 1 degree. All Camber Adjustable A-Arm Kits are shipped with a negative 1-degree camber. Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding. This Camber Adjustable feature allows total adjustment so that you can fine-tune the camber on each side.


    Our ball joint housing specs are compatible with OEM and most aftermarket ball joints. We offer pre-installed ball joints using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms. And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.


    Easy to install with a jack or lift in your driveway or garage with basic tools.

    Vehicle Applications:

    • 2021-2022 Polaris Ranger XP 1000
    • 2021-2022 Polaris Ranger XP 1000 CREW
  • Do it yourself!

    Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ZBROZ Racing is NOT responsible for any damage or failure resulting from improper installation.

    Download Pdf Instructions

    Have a certified mechanic do it for you!

  • Shipping: Zbroz Racing products are fulfilled per order on a first come first serve basis. We strive to fulfill all orders within 48 hours. Should a backorder condition result you will be notified and we will fulfill your order as quickly as possible. If placing an order for a Zbroz Racing Exit Shock product. Please know they are custom built to order and depending upon demand can take 4 weeks or longer to supply. Zbroz Racing products are built to last and exceed your expectations with quality, performance and durability in mind. Should you have any questions or concerns please contact us at customerservice@zbrozracing.com. Thanks again for your order and we look forward serving your off-road needs.
